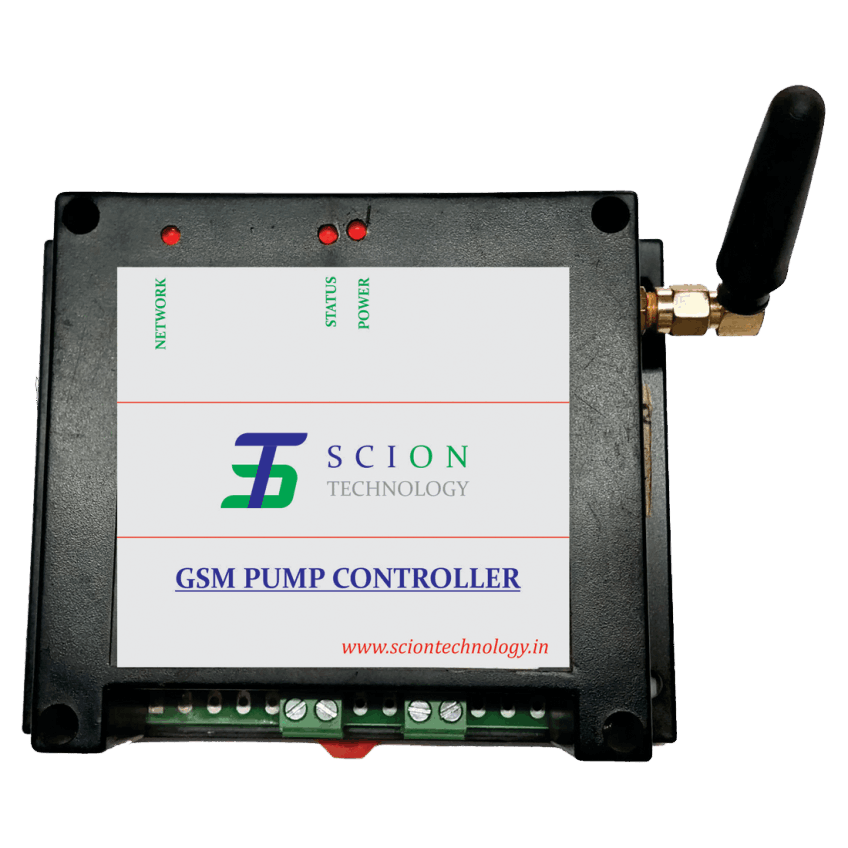

GSM Base Pump Controller
Product Code: PC01
SMS/GSM Remote Water Pump Controller is a device which can control and monitor electric motors, agriculture pump sets through mobile phone. This is a GSM based remote controller to switch ON and OFF pump sets or any electric motor from remote location. This SMS/GSM remote controllerhelps the farmer to handle agricultural pump sets easily. Farmer can set running time of pump set after it gets ON. It also helps the farmers to save life from snake bite in night time, saves water, time and electricity. One SIM Card is required for its operation.
• One year warranty
Application Area:
• Agriculture
• Factories
• Industry
Brief Description of SMS/GSM Pump Controller:
• Switch ON/OFF agriculture pump set through "MISSED CALL".
• Suitable any electric motors(1Phase or 3Phase).
• Suitable for all type of button starters.
• AC main line status notification through SMS.
• Configurable via SMS.
• Manual ON/OFF intimation through SMS.
• Internal battery.
Network: GSM/GPRS
Band Quad-band: EGSM 900 / DCS 1800 and GSM 850 / PCS 1900 Mhz
Transmitting Power: Class 4 (2W) at EGSM 900 / GSM 850, Class 1 (1W) at DCS 1800 / PCS 1900
Supply Voltage: 230 V AC, 50 Hz.
Internal Voltage: 12V DC
Output: 2 potential free relay contact
Contact Rating: 23 Amp. for Pump On relay and 7 Amp. Pump Off relay
Power Consumption: 1.2 Watt
Monthly Consumption: 1 Unit
Temperature: -20 to + 70 degree Celsius
Dimension: 100mm * 100mm * 50mm.
Weight: 400 gm.
